Sealing a Walk-In Humidor: Envelope, Door and Penetrations

A walk-in humidor is sealed correctly when moisture can neither migrate through the walls nor leak around the door, while a small, deliberate amount of air still moves inside the room. That means a continuous vapor barrier on the warm side of the insulation, every penetration closed with acoustic sealant, a compression gasket on a well-built door, and mechanical climate control that does the rest. Get the envelope right and your equipment idles. Get it wrong and the best humidifier you can buy spends its life fighting the building.

We design and supply humidors for collectors, lounges and clubs, and the pattern repeats: owners spend months choosing a unit and an afternoon thinking about the room. This guide reverses that order.

TL;DR

• Put a continuous 6-mil polyethylene vapor barrier on the warm side of the insulation, and seal every seam and penetration with acoustic sealant (Smokhaus).
• The door is the most-used breach in the room. Specify a compression gasket, a tight frame and a threshold you can verify.
• Do not aim for hermetic. A walk-in needs gentle air mixing, not outside-air exchange.
• Spanish cedar buffers humidity but does not replace a barrier or active control.
• Test the seal before you load cigars, then monitor in more than one location.

Table of Contents

• Why the envelope matters more than the humidifier
• The three layers of a sealed walk-in
• Vapor barrier: the placement that decides everything
• Penetrations: where good rooms quietly fail
• The door: your most-used breach
• Sealed does not mean airtight
• Temperature and humidity are one problem
• Spanish cedar: buffer, not barrier
• Our perspective
• How to test the seal before you load cigars
• Mistakes we see most often
• Smaller collections and cabinet-scale sealing
• Commission a room built to hold
• FAQ
• Sources

Why the envelope matters more than the humidifier

Humidity migrates through building materials by vapor diffusion, and a room held at around 70% relative humidity sits next to spaces that are far drier or wetter. Design guidance for cigar rooms puts it plainly: the construction is the unsung hero, because airtightness and vapor management set the load placed on your climate equipment.

Think of it as a ledger. Every unsealed outlet box, every gap at the door frame, every unlined stud bay is a small withdrawal from the humidity you are paying to create. A tight envelope means a modest humidifier running briefly. A leaky one means a larger system cycling constantly, with wider swings in relative humidity and more wear on everything.

It also changes what you can reasonably promise yourself. Holding a band as narrow as ±1–2% RH is an engineering result, not a product feature, and it begins with the walls. We cover the equipment side in our guide to cigar room HVAC.

The three layers of a sealed walk-in

A useful way to plan the room is in three layers, working from the structure inward.

1. Structure and insulation. The shell must be weathertight and thermally stable. A shed conversion, for example, needs a sound roof and foundation before anything else is worth doing.
2. Vapor barrier. The moisture stop, continuous and sealed.
3. Interior lining. Spanish cedar and finish materials that buffer humidity and carry the aesthetic.

Most failures come from skipping or misordering the middle layer.

Vapor barrier: the placement that decides everything

The published specification for a walk-in envelope calls for a continuous 6-mil polyethylene barrier on the warm, interior side of the insulation, sealed at all seams and at every penetration for wiring, outlets and pipes. Acoustic sealant is the recommended closer because it stays flexible rather than cracking as the structure moves.

The most common pitfall is placing the barrier on the wrong side. In a conditioned room inside a larger building, the humid side is the interior, so the barrier typically sits on the interior face of the wall studs, behind the cedar cladding (UltraPure Systems). Put it on the cold side and you invite condensation inside the wall, which is how a collection room becomes a structural problem.

A practical sequence

1. Frame and insulate the room, keeping the insulation continuous around corners and at the ceiling junction.
2. Install the polyethylene sheet over the interior face, overlapping seams generously.
3. Seal each seam and each edge with acoustic sealant, not tape alone.

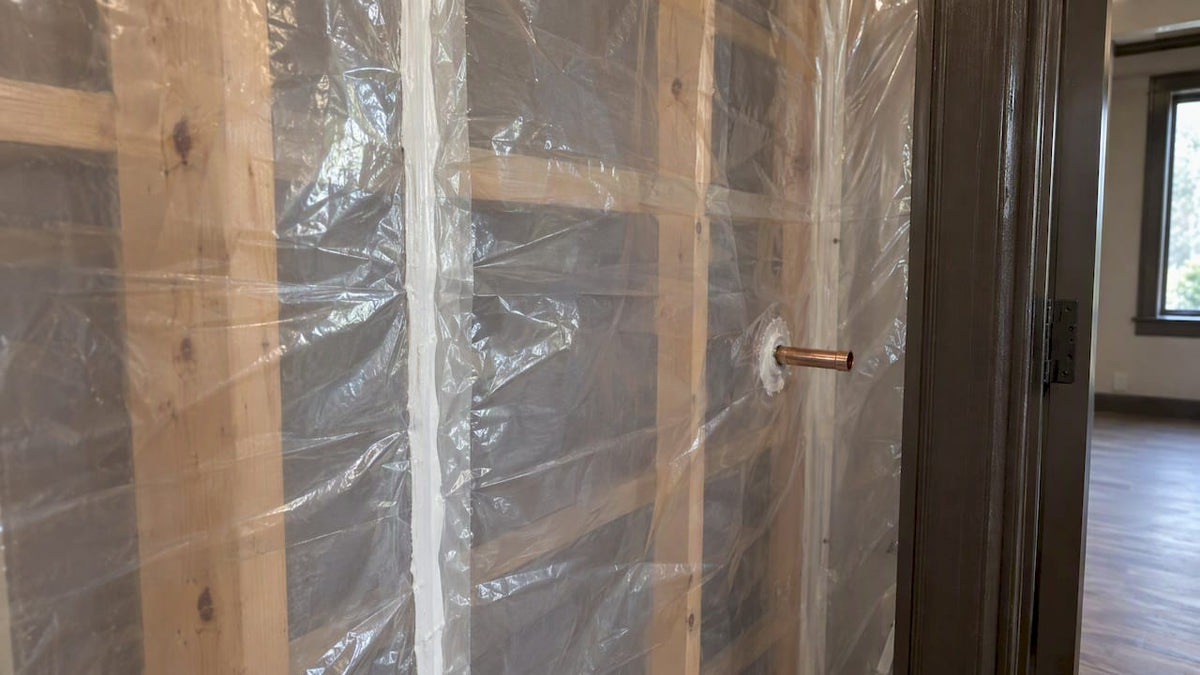

4. Cut and seal around electrical boxes, lighting, ducts and the door frame as you reach them.
5. Close the loop at floor and ceiling so the barrier is a single envelope, not a series of panels.
6. Only then fit the lining.

The unglamorous truth is that a barrier with one forgotten penetration is a barrier with a hole. The same source is blunt that failing to seal electrical boxes, ductwork and door frames negates the barrier’s efficacy.

Penetrations: where good rooms quietly fail

Walk the room in your mind and count what passes through the envelope. Typically:

• Electrical outlets, switches and lighting circuits
• Supply and return ducts for the climate system
• Refrigerant, condensate or water lines
• Sensor and control cabling
• Glass panels or display windows, if you are curating a showpiece

Each needs an airtight route in. Use gasketed or sealed electrical boxes, run cable through a single sealed sleeve rather than several loose holes, and keep the count low by planning the layout before the drywall, not after. Our team applies this thinking to joints too: the joinery techniques that seal a room for 68–72% RH matter as much on a cedar panel as on a lid.

The door: your most-used breach

Every visit opens the envelope, and every closure either restores it or doesn’t. Forum threads on small humidors show owners reaching for felt strips, tape or sailmaker’s wax to fix a lid. Those are patches for a box. A room deserves a specified detail.

For a walk-in, the door seal typically relies on a compression gasket set into a rabbet around the frame, the same job a lid performs on a desktop unit. Consider the following when specifying or inspecting one:

• A rigid, flat frame. A gasket cannot compensate for a door that has warped or a frame that is out of square.
• Continuous gasket contact on all four sides, including the threshold, where a sweep or drop seal is usual.
• Low-odor materials. Avoid anything that off-gases near tobacco. Aquarium-grade sealants are commonly recommended in collector discussions because many do not give off strong odors, but always let any sealant cure fully before loading cigars.
• Latching hardware that actually compresses the gasket, rather than a handle that merely keeps the door shut.
• Insulated glass, if the door has a window, with the same sealing standard at the glazing.

A quick field check: close the door on a strip of paper at several points around the frame. If it slides out freely anywhere, the gasket is not compressing there. It is the walk-in cousin of the dollar-bill test that collectors use on boxes.

Sealed does not mean airtight

Here is the point that surprises people. A walk-in humidor is not a hermetically sealed box. It needs subtle, controlled circulation to prevent stratification and stagnant pockets, which lead to mold and local humidity spikes. Relying on an airtight room with no engineered climate integration often creates the very instability it was meant to prevent.

The distinction is between mixing and exchange. HVAC designers stress that ventilation should not be confused with bringing in outside air: constant outdoor intake forces the system to condition new air continuously and undermines a balanced ecosystem. What you want is gentle movement that blends the conditioned air, with the envelope doing the work of keeping the outside out.

We go deeper on this in walk-in humidor ventilation, where the rule is to monitor first and size equipment second.

Temperature and humidity are one problem

Cooling dries air, and drying calls for humidification. HVAC systems for walk-in humidors must therefore treat the two as interdependent, and professional installations often use dedicated sensors and PID control loops for responsive, stable behavior. A tight envelope makes that job easier because the loads are small and predictable.

For commercial rooms and clubs, the building-science benchmark worth knowing comes from ASHRAE. Its position document recommends keeping indoor dew point below 60°F (15°C) to avoid persistent dampness, and it describes monitoring gypsum board moisture content and indoor humidity as early warnings. A cigar room runs humid by design, so the lesson is not to chase that number but to understand that a sealed, damp room needs active control and good sensors. Our notes on commercial humidor HVAC integration translate this for lounges.

Spanish cedar: buffer, not barrier

Spanish cedar is the classic interior lining because it buffers humidity and resists mold naturally, though covering walls, ceiling and shelving is a significant material cost. Good design uses non-reactive, low-absorption materials for the core structure, since materials that off-gas can absorb or release moisture unpredictably.

Two cautions follow. First, cedar is not a vapor barrier. It sits in front of one. Second, hygroscopic linings can hold moisture, so they must be paired with active systems that maintain the target dew point (ASHRAE). The same principle of buffering and slow release shows up wherever people store moisture-sensitive plant material, as in this explanation of keeping flower fresh for months. For lining choices in a cigar room, see our comparison of six walk-in humidor materials and the role of cedar sheets.

Shelving deserves a thought too, because it affects airflow and surface moisture. We address it in shelving that controls dew point.

Our perspective

We build our approach to walk-in humidors around a simple belief: the room is the instrument, and the humidifier is only the player. A collection is a timeline of memories and, for many of you, a liquid asset. It deserves a sanctuary whose stability comes from construction, not from constant correction.

In practice that means we start consultations with the envelope. Where will the barrier sit? How many penetrations does the layout need? How will the door close, and how will you know it is sealing? Only then do we talk about cedar, lighting and the climate system. Collectors who commission bespoke work often arrive asking about aesthetics, and they leave understanding why the invisible layers come first.

We also prefer honesty about trade-offs. A walk-in is not right for every collection. If your cigars fit comfortably in a large cabinet, a well-made unit is a more sensible, and far simpler, answer.

— Belle Dunn

How to test the seal before you load cigars

Do this with the room empty, climate system running, and sealants fully cured.

1. Run the room to target (commonly 65–72% RH, depending on your preference) and let it settle for several days.
2. Log readings from at least two locations, high and low, and near the door. Larger rooms benefit from more. Our guide to monitoring walk-in humidors explains placement.
3. Watch the equipment’s duty cycle. A humidifier running almost constantly points to a leak or a missing barrier section.
4. Check the door gasket with the paper-strip test at multiple points.
5. Inspect penetrations for any sign of drafts or condensation at outlets and ducts.
6. Hold the room for a week with stable readings before moving the collection in.

Use calibrated hygrometers for this. A drifting sensor will mislead every other decision, and quality accessories such as hygrometers are cheap insurance.

Mistakes we see most often

• Barrier on the wrong side of the insulation, or sheet left unsealed at seams.
• Forgotten penetrations, especially outlets added late.
• Chasing airtight and omitting circulation, then wondering about stagnant corners.
• Strong-smelling sealants or finishes applied without full cure time.
• Sizing equipment first, then discovering the envelope was the problem.
• One sensor only, which hides stratification.

Smaller collections and cabinet-scale sealing

Not every collector needs a room. If you are weighing options, the same logic applies at cabinet scale, where insulation and door seals decide stability. Our note on cigar cabinet insulation covers it, and you can browse the cabinet humidors collection or electronic humidors for climate-controlled options.

Commission a room built to hold

If you are planning a walk-in, our bespoke service starts with the envelope and carries through design, consultation, installation guidance and white-glove delivery. Explore Dunn’s Bespoke and tell us about your space, or visit Dunn’s Luxury Selections to see the full range. We do not publish a price for bespoke commissions, because every room is specified individually.

FAQ

Does a humidor need to be airtight?

A small box should close tightly, but a walk-in should not be hermetic. It needs gentle internal air movement so humidity does not stratify, and a sealed envelope so outside air does not drive the load (Tobacconist University). Tight walls, controlled mixing.

Which side does the vapor barrier go on?

On the warm, humid side of the insulation, which for a conditioned room inside a building is typically the interior face of the studs, behind the cedar. Seal every seam and penetration with acoustic sealant.

What should I use to seal gaps in a humidor?

For a walk-in, rely on a compression gasket at the door and acoustic sealant at barrier seams. Collector discussions often favor aquarium-grade sealants for small repairs because many are low in odor. Let any product cure completely before cigars go in.

How do I know if my walk-in is leaking?

Watch the humidifier’s duty cycle and compare sensor readings near the door with those at the back. A system that never rests, or a persistent difference between locations, usually means a leak. Check outlets, ducts and the door gasket first.
